UPN - European standard channels

Classification :

Uchannel（U-STEEL） is a long stripe of steel with a fluted section , construction and mechanical use of carbon structural steel, is a profile steel with complex section , its section shape is groove shape. U-Steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing., u-steel is often used together with I steel.

emma@stainlesssteel-hh.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Carbon steel Channel

UPN channel steel supplies ‘C’ shape light and heavy channels and other imported profiles like UPN , UPE , U channels , PFC and American standard channels etc Several international standards are available with our company including:ASTM A36, ASTM A 572 Gr.50.DIN 1025 Part 5.EN 10034, EN 10025, S275, S355
H Beam Dimensions:
DIN 1026-1: 2000, NF A 45-202: 1986
UPN channel Tolerances:
EN 10279: 2000
Surface condition:
According to EN 10163-3: 2004, class C, subclass 1

Identification	Nominal weight 1m	Nominal dimensions						Cross-section	Dimensions for detailing				Surface
UNP		b	h	s	t=R1	R2	e	A	d	Ø	emin	emax	AL	AG
UNP		b	h	s	t=R1	R2	e	A	d	Ø	emin	emax	AL	AG
	kg/m	mm						cm2	mm		mm	mm	m2/m	m2/t
	kg/m	mm						cm2	mm		mm	mm	m2/m	m2/t
UPN 30	4,27	33	30	5,0	7,0	3,5	-	5,4	-	-	-	-	-	-
UPN 40x20	2,86	20	40	5,0	5,5	2,5	-	3,7	-	-	-	-	-	-
UPN 40	4,87	35	40	5,0	3,5	7,0	-	6,2	-	-	-	-	-	-
UPN 50	5,59	38	50	5,0	7,0	3,5	13,7	7,12	21	-	-	-	0,232	42,22
UPN 65	7,09	42	65	5,5	7,5	4,0	14,2	9,03	34	-	-	-	0,273	39,57
UPN 80	8,64	45	80	6,0	8,0	4,0	14,5	11,00	47	-	-	-	0,312	37,10
UPN 100	10,6	50	100	6,0	8,5	4,5	15,5	13,50	64	-	-	-	0,372	35,10
UPN 120	13,4	55	120	7,0	9,0	4,5	16	17,00	82	-	-	-	0,434	32,52
UPN 140	16,0	60	140	7,0	10,0	5,0	17,5	20,40	98	M12	33	37	0,489	30,54
UPN 160	18,8	65	160	7,5	10,5	5,5	18,4	24,00	115	M12	34	42	0,546	28,98
UPN 180	22,0	70	180	8,0	11,0	5,5	19,2	28,00	133	M16	38	41	0,611	27,80
UPN 200	25,3	75	200	8,5	11,5	6,0	20,1	32,20	151	M16	39	46	0,661	26,15
UPN 220	29,4	80	220	9,0	12,5	6,5	21,4	37,40	167	M16	40	51	0,718	24,46
UPN 240	33,2	85	240	9,5	13,0	6,5	22,3	42,30	184	M20	46	50	0,775	23,34
UPN 260	37,9	90	260	10,0	14,0	7,0	23,6	48,30	200	M22	50	52	0,834	22,00
UPN 280	41,8	95	280	10,0	15,0	7,5	25,3	53,30	216	M22	52	57	0,890	21,27
UPN 300	46,2	100	300	10,0	16,0	8,0	27,0	58,80	232	M24	55	59	0,950	20,58
UPN 320	59,5	100	320	14,0	17,5	8,8	-	75,80	246	M22	58	62	0,982	16,50
UPN 350	60,6	100	350	14,0	16,0	8,0	-	77,30	282	M22	56	62	1,05	17,25
UPN 380	63,1	102	380	13,5	16,0	8,0	-	80,40	313	M24	59	60	1,11	17,59
UPN 400	71,8	110	400	14,0	18,0	9,0	-	91,50	324	M27	61	62	1,18	16,46

Warehouse Storage

As a steel supplier in Shandong Province, we have our own factory as follows: the seamless stainless steel pipe factory located in Wuxi. A welding stainless steel pipe factory located in Wuxi. A stainless steel coil processing workshop for cutting, winding, and unwinding steel coils.

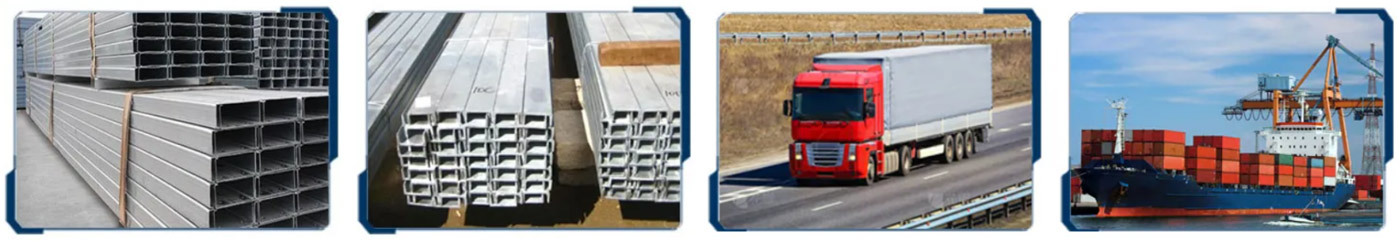

Packing and shipping

Now the main business scope of our company covers various kinds of Stainless steel and carbon steel materials , such as hot rolled / cold rolled stainless steel coils / sheet , Seamless / welded stainless steel pipe ( tube ).

Technology

Customer conversation

We provide the products consultation , purchase plan suggestion , logistic service ( including the shipment service , custom works ,etc ).

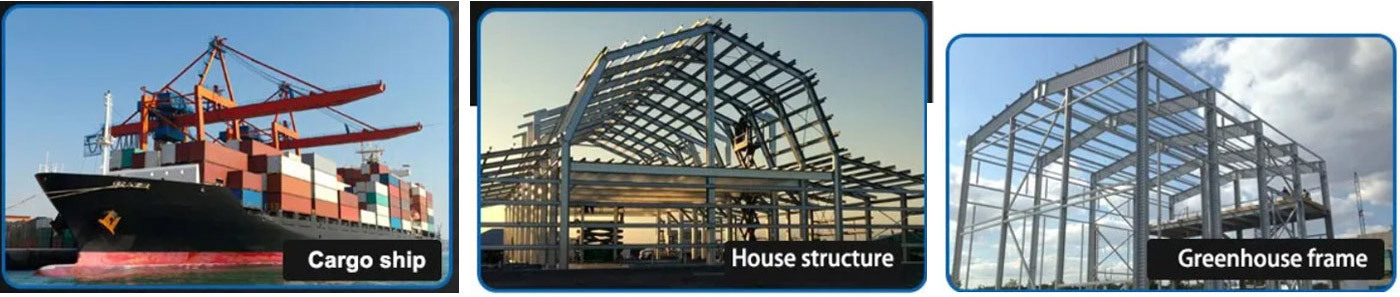

Application field
